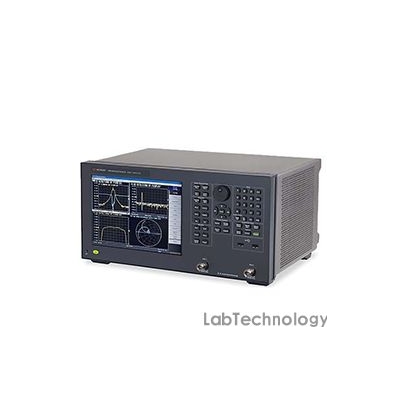

E5061B ENA矢量网络分析仪

最大频率: 3 GHz

  • 类 别:
  • 信号分析仪
  • 型 号:
  • E5061B
  • 订货号:
  • TP0000823

商品名称:E5061B ENA矢量网络分析仪

  • 货号:TP0000823

主要特性和功能

    丰富的测试仪选件,您可以选择最适合自身测试需求的配置:100 kHz 至 1.5 GHz/3 GHz,2 端口,50 或 75 Ω,传输/反射或 S 参数测试仪

使用低频-射频选件(选件 3L5/3L4/3L3)满足各类应用需求:5 Hz 至 3 GHz,2 端口,50 Ω,S 参数测试仪,增益相位测试端口,内置的直流偏置源

在单一仪器中整合了网络分析和阻抗分析两大功能,可以定制您的应用(选件 3L5/3L4/3L3 和 005)


技术指标

  • 最大频率:3 GHz

  • 动态范围:120 dB

  • 输出功率:10 dBm

  • 内置端口数量:2 端口

  • 谐波:-25 dBc

  • 扫描速度:最高可达 201 个点9毫秒

  • 元器件:

电缆

◆ 放大器

◆ 谐振器

◆ 直流-直流转换器/PDN

◆ 天线/线圈/RFID

◆ 滤波器

◆ LCR 元器件


选件

Accessories

E5061B-820Add mouse

E5061B-810Add keyboard

E5061B-1CPRack mount and front handle kit

E5061B-1CNFront handle kit

E5061B-1CMRack mount kit

E5061B-720Add 50 ohm resistor set

Test set

E5061B-3L5LF-RF network analyzer with DC bias source, 5 Hz to 3 GHz

E5061B-235S-parameter test set, 100 kHz to 3 GHz, 50 ohm system impedance

E5061B-217S-parameter test set, 100 kHz to 1.5 GHz, 75 ohm system impedance

E5061B-215S-parameter test set, 100 kHz to 1.5 GHz, 50 ohm system impedance

E5061B-137Transmission/Reflection test set, 100 kHz to 3 GHz, 75 ohm system impedance

E5061B-135Transmission/Reflection test set, 100 kHz to 3 GHz, 50 ohm system impedance

E5061B-117Transmission/Reflection test set, 100 kHz to 1.5 GHz, 75 ohm system impedance

E5061B-115Transmission/Reflection test set, 100 kHz to 1.5 GHz, 50 ohm system impedance

E5061B-237S-parameter test set, 100 kHz to 3 GHz, 75 ohm system impedance

E5061B-3L3LF-RF network analyzer with DC bias source, 5 Hz to 500 MHz

E5061B-3L4LF-RF network analyzer with DC bias source, 5 Hz to 1.5 GHz

Timebase stability

E5061B-1E5High stability timebase

Hard disk drive option

E5061B-020Standard Data Storage

Additional features

E5061B-010时域分析/故障定位分析

E5061B-005用于 E5061B ENA LF-RF 矢量网络分析仪的阻抗分析选件(选件005)

E5061B-006无线功率传输分析

Calibration documentation

E5061B-A6JANSI Z540-1-1994 Calibration

E5061B-1A7Calibration + Uncertainties + Guardbanding (Not Accredited)

E5061B-721Add GPIB

E5061B-722Not required GPIB

E5061B-731Add Handler IO

E5061B-732Not required Handler IO

E5061B-PLGContinental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
